More Affordable Inkjet POD Solution in the World!
• Market approved drop-on-demand industrial inkjet head technology
• Total roll-to-sheet print-on-demand inkjet print solution
• Short-run mono-color duplex or dual-color duplex book and periodical printing
• Flexibledeployment of structure, easily expand to dual-color duplex or spot color
• Sales price competitivity as lower as offset press
Have you or your customers been struggling the pain points in traditional offset book and periodical pringting?
• Huge waste of inventory / repertory / stock
• Environmental impact of waste and costly chemical treatment
• Long-term press ready time
• Smelly, noisy and dirty workshop harmful to worker's health
• Increasingly cost of human power
Today, you are having the right solution ever before from Founder, most affordable EagleJet POD solution!
Solution Diagrams
• Print Line
• Press Machine

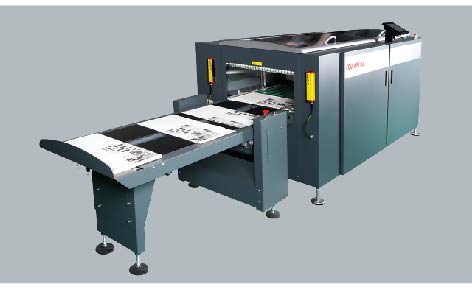

• Cutter Line

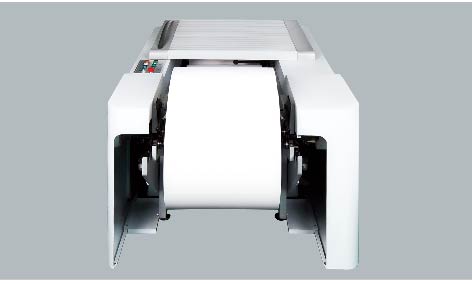

• Unwinder
Core Technologies
• Inkjet printhead control
• Circulating ink supplying control
• Automatic printhead self-clean system
• Fast-speed paralleling RIP
• Variable data processing
• Special multiple grade-level FM screening for inkjet
Productivity
• Practical printing speed: 99 m/min
• Power-on to ready time: <20 minutes
• Daily maintenance time: <20 minutes
• Daily running time: >20 hours
• 63,000 A4 prints per hour on average speed at 85 m/min
• Average sales: lower than laser and approaching to offset
• Competitive balance: 2,000-3,000 copies comparing to offset
Key features
• 64-bit system, more memory space, higher performance, up to 1,600 A4 prints per minute
• Independent and stable tension control, to avoid the damage of printhead caused by the moving paper in unstable tension
• Optimized structure of printhead module, to simplify the services of manufacture, installation and maintenance
• Re-designed and patented paper feeding route, to get to the root of the problem of hurting the printhead module caused by high temperature air while printing back face
• Implemented QR code to monitor the correction of whole job, including JobID, Copy#, Page#, Front/Back, etc.
• Re-designed drying system, narrow spectrum, to save power consumption by 50%
• Independent and centralized ink supplying cabin (from main press), easy to deploy and extend the ink supplying ability for more press
• Untouched self-clean system, longer life of printhead
• Remote diagnosis and license management via internet
• Support multiple languages: Chinese, English, Korean
Technical specifications
• Inkjet head: Drop-on-Demand Piezoelectric, powered by Kyocera
• Resolution: 600dpi*600dpi/2bit, 600dpi*1,200dpi/2bit (on half speed)
• Max. printing speed: 100m/min
• Max. media width: 560mm(P5600) | 440mm(P4400)
• Max. printing width: 540mm(P5600) | 432mm(P4400)
• Printing mode: Monochrome duplex(Pxx12), dual-color simplex(Pxx21); Dual-color duplex(Pxx22)
• Media feeding mode: Roll to roll, with inline buffer, cutter and stacker
• Media thickness: 45 gsm – 165 gsm
• Media type: Offset paper, newspaper, inkjet coated paper
• Ink: Water based pigment ink, dye ink
• Dry method: Infrared dryer (automatic adjustment on printing speed)
• Digital front-end: Founder EagleJet™inkjet imaging system (Windows Server based)
There have been more than 65 sets of EagleJet P series inkjet digital press installed in China as of January 2019, and more is coming in this year.
